Specifications

Material: ABS, Iron, Aluminum, Alloy Steel, HDR
Surface Treatment: Spray-paint, Blackening
Color: Black, Red, Grey
Power Source: ‎Gas Powered
Starter System: Hand Pull Start
Engine Type: Two-stroke, Air Cooling, Single-cylinder
Number of Items: 1
Power: 1900W
Noise: ≤103DBA
Displacement: 52cc
Max. Torque: 3.5N.m
Gasoline Type: #92
Impact Energy: 25-45J
Fuel Tank Capacity: 1L/0.26gal
Impact Frequency: 800-2800BPM
Fuel Consumption Rate: ≤0.5L/h
Maximum Rotational Speed: 6500RPM
Fuel Type: Mixed Oil (25 Gasoline: 1 2-stroke Engine Oil)
Gross Weight: 22.7kg/50lbs
Net Weight: 20.95kg/46.18lbs
Equipped Socket Size: 55mm/2.17in(Small), 70mm/2.76in(Big)
Product Size: 80*35*25cm/31.5*13.78*9.84in
Package Size: 73*44*35cm/28.74*17.32*13.78in

Key Features

High Efficient: The powerful 1900W, 52cc two-stroke engine enhances its maximum impact speed to a maximum rotational speed of 6500RPM, enabling efficient and precise completion of various pile driving tasks.

Selected Materials: The ABS shell maintains lightweight while ensuring durability. Sprayed aluminum, blackened iron, and alloy steel are all sturdy and durable. The soft and anti-slip HDR protective cover greatly reduces the recoil force of the machine, making it easy to grip and use.

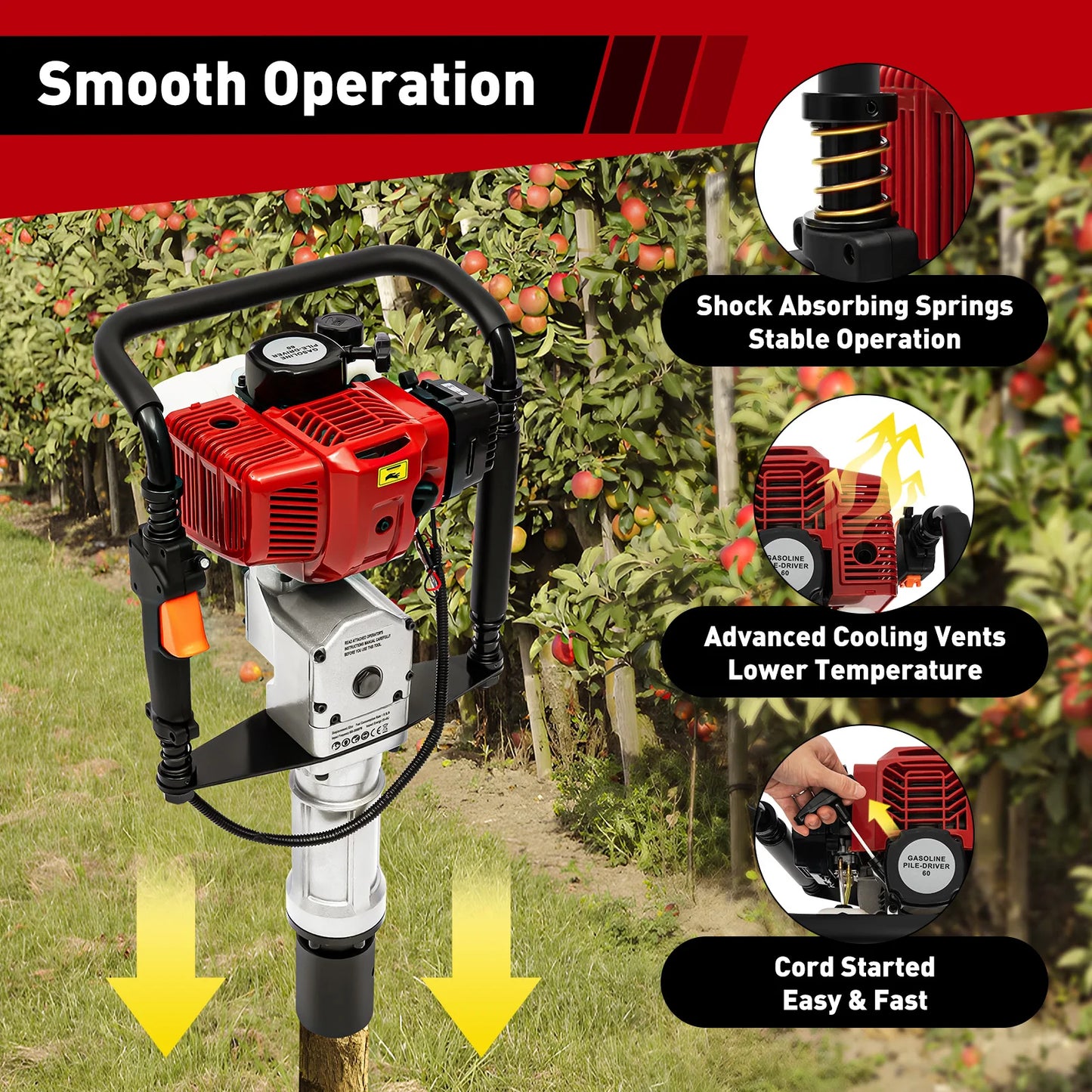

Smooth Operation: Four high-quality shock absorption springs on both sides and advanced cooling vents ensure the stable operation of the machine with minimal impact and lower temperature. A two-stroke engine is not prone to cylinder pulling or stalling even after prolonged operation, allowing you to use it with confidence.

Easy to Use: You only need to quickly and continuously pull the starting pull rope to start the machine. The design of the integrated handle switch enables easy and safe starting and shutting down. The design of infinitely adjusting speed through hand pressure also achieves easier speed control.

Large Semi-transparent Fuel Tank: A 0.26gal large capacity and semi-transparent fuel tank allows you to monitor fuel usage at any time, replenishes fuel promptly and makes your work more efficient.

Quick&Firm Replacement: The socket with high hardness and thread design can be quickly replaced according to the size of the pile, and the deep thread can ensure firm fixation.

Safe to Use: The safety lock, visible oil pipelines, security tips on the body, and the one-click flameout switch all provide you with more protection, making you safer during operation.

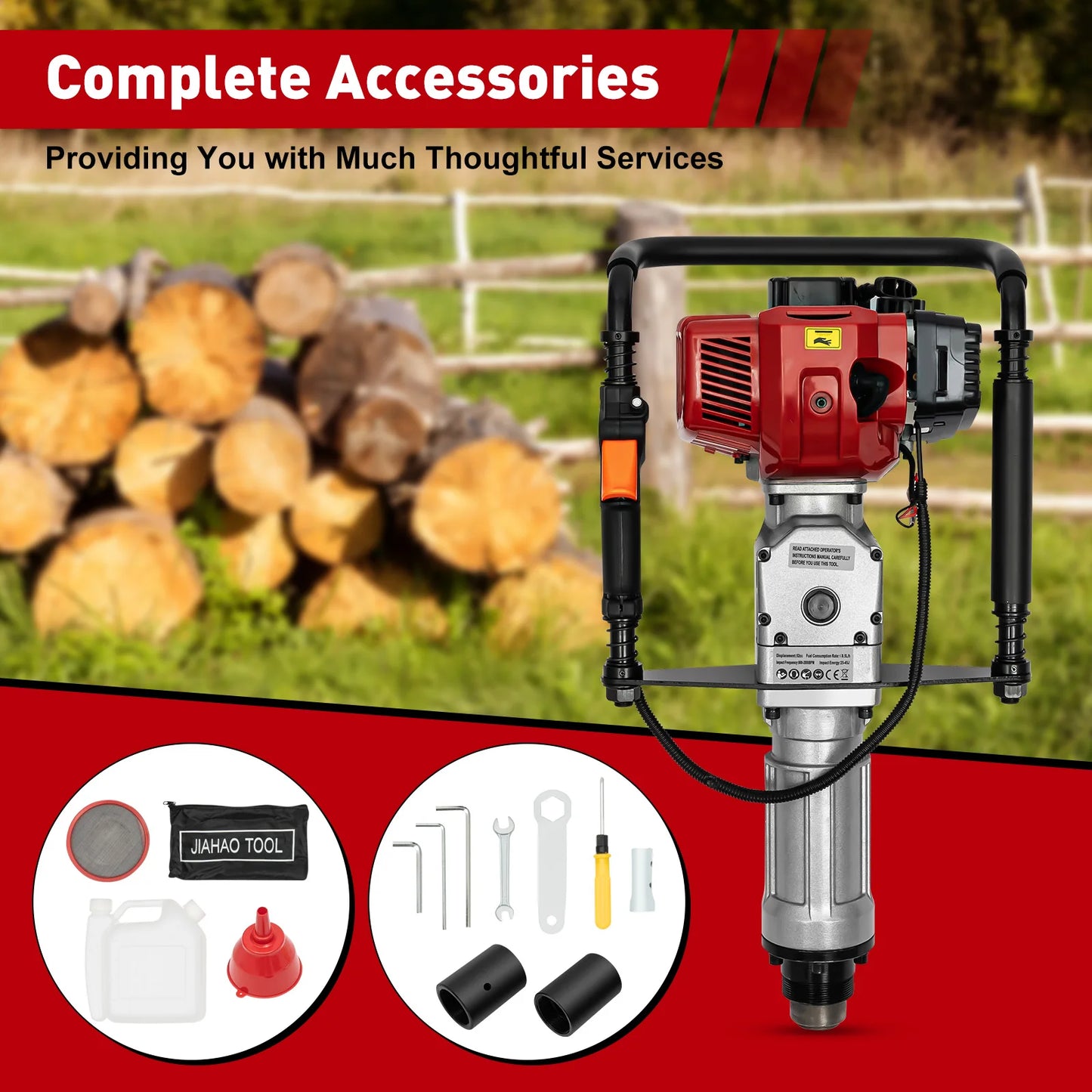

Complete Accessories: In addition to a post driver, our package also prepares different sizes of post sockets, an oil-mixing kettle, a tools kit, and other components and parts that you may need in your work, providing you with more thoughtful services.

Low Noise: As a heavy-duty machine, its noise during operation is only below 103 DBA, which allows you to pay attention to the changes in the working environment and keep track of surrounding movements during use.

Protective Packaging: This product comes in a custom foam that resists common compression and falls to prevent product damage in transit as much as possible.

Details
Carburetor: It allows fuel to burn more fully during operation, avoiding fuel waste while also being very cost-effective.

2 Post Driving-head: The 2 post-driving heads (2.17in, 2.76in) make this an ideal choice for T-Posts, Y-Posts, and ground rods.

Throttle Adjustment Switch: You can freely control the throttle and easily adapt to various working environments.

Package Included

1*Petrol Post Driver
2*Post Driving Heads
1*Oil-mixing Kettle
1*Tools Kit
1*Funnel
1*Filter Nozzle
1*English Manual
All Accessories for Assembly

Notes

1.Please read the manual carefully and strictly follow the precautions for a better experience.
2.If this product does not hammer, please check if too much lubricating oil has been added. Clean the excess oil in the cylinder and add about 20 grams of high-temperature resistant lubricating oil again.
3.If the impact frequency is too high to hold by hand, it is recommended to slightly reduce the speed of the carburetor. Otherwise, please increase the impact frequency.
4.If the machine is not easy to start, first check the ratio of oil: gasoline: oil=25:1 (please note to use 2-stroke oil), then pull out the rope for arm's length and continue pulling it two or three times to start. When the machine starts cold, please close the baffle and wait for the machine to function properly before opening it.
5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
