SPECIFICATIONS



Brand Name: VEVOR



Certification: CE

Brand Name: VEVOR

Type: Electric Winch

Motor Power: 12V, 4.6 kW

Pull/Lift Power: 13,000 lbs (5,897 kg)

Gear Ratio: 265

Recommended Battery: 650CCA Minimum for Winching

Synthetic Rope Length: 80 ft x 3/8 in (20 m)

Gear Train: 3 Stage Planetary Gear

Rope Material: Synthetic Rope

Waterproof Grade: IP67

Control: 1PC Wireless Remote Control & 1PC Wired Control

Fairlead: Aluminum Hawse Fairlead

Material: Stainless Steel

Brake: Automatic Load-Holding Brake



Product Description

Upgraded Electric Truck Winch 13000 Ibs with 80ft Synthetic Rope

The newly updated electric winch is sturdy and durable enough to cope with any problem. 13,000lbs Winch with 80ft synthetic rope gives you plenty of power to pull you or your friends out of the messiest of situations. Its advanced appearance, convincing power, and complete remote control kit can meet all your needs. Very trustworthy to use for years. For more feedback about this item.

• Splendid Performance

• Advanced Synthetic Cable

• Convenient Wireless Remotes

• Enjoy any Adventure

Tough Equipment & Tools, Pay Less

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

Key Features

13000 Lbs Loading Capacity

The electric winch features 13000 lbs loading capacity, suitable for ATV, UTV, car, boat, trucks, jeeps, modified vehicles, and multi-purpose utility trailers.

Powerful Motor & Gear

Powerful motor: 4.6 KW (6.2 HP), gear reduction ratio 265:1, 3 stage planetary with sliding ring gear clutch and auto in drum braking.

High Tensile Synthetic Rope

The synthetic rope is lightweight but strong, and its strength is 10 times that of wire rope. It also has good resistance to bending fatigue, abrasion resistance, and weather resistance. Suitable for all kinds of harsh environments.

Wireless Remote Control

You can operate the ATV winch even at a long distance with the wireless remote control. Or you can turn to the wired remote control as you like.

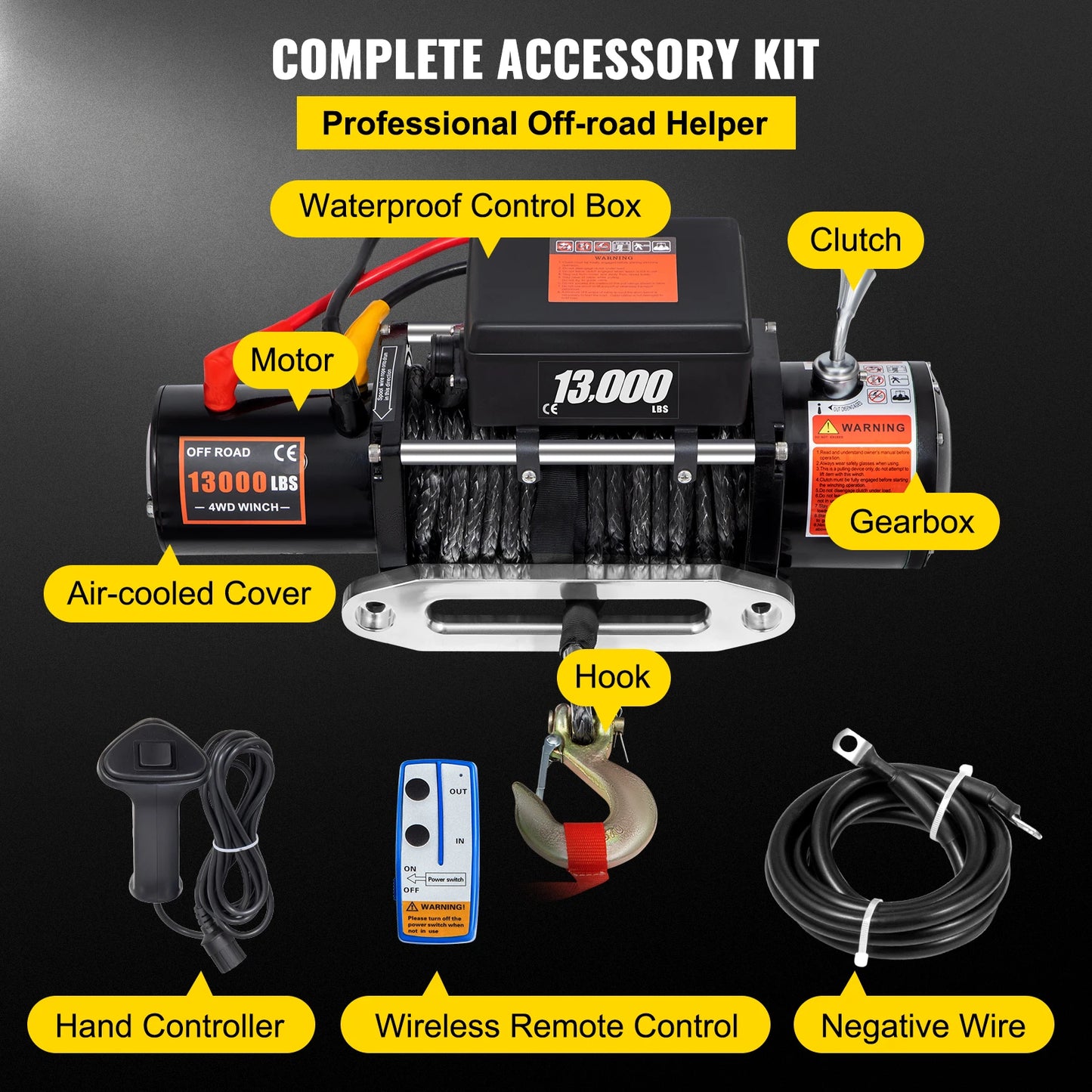

Complete Accessory Kit

All winches come with a thoughtful accessory kit, including wireless remote tools, a hook, control box, and a roller fairlead, ensuring excellent working performance.

Various Application

If you get into trouble when looking for a campsite that no one else can get to, this winch will be a lifesaver to bail your vehicle out of mud, inclines, or broken ground. Also, suitable for heavy lifting, fishing, etc.

Specifications

• Type: Electric Winch

• Motor Power: 12V, 4.6 kW

• Pull/Lift Power: 13,000 lbs (5,897 kg)

• Gear Ratio: 265:1

• Recommended Battery: 650CCA Minimum for Winching

• Synthetic Rope Length: 80 ft x 3/8 in (20 m)

• Gear Train: 3 Stage Planetary Gear

• Rope Material: Synthetic Rope

• Waterproof Grade: IP67

• Control: 1PC Wireless Remote Control & 1PC Wired Control

• Gear Train: 3 Stage planetary

• Fairlead: Aluminum Hawse Fairlead

• Material: Stainless Steel

• Brake: Automatic Load-Holding Brake

• Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010"

• Overall Dimensions:21.8x7.7x6.3 in/ 55.3x19.5x16 cm

Package Content

• 1 x 13,000lbs Winch with 80ft Cable Rope

• 1 x Aluminum Hawse Fairlead

• 1 x Hammer Forged Hook

• 1 x Convertible Control Pack

• 1 x Wireless Remote Control

• 1 x Wired Remote Control

• 1 x Shackle

• 1 x Set of Bolts

• 1 x Set of Wires

• 1 x User Manual

Features & Details

• 【SPLENDID PERFORMANCE】- Winch Load Capacity: 13,000 lbs (5,897 kg); Power: 4.6 KW; Gear Ratio: 265:1. The powerful motor is connected to a 3-stage planetary gear system for stronger pulling power and faster speed. Suitable for cars, boats, trucks, jeeps, modified vehicles, and multi-purpose utility trailers.

• 【ADVANCED SYNTHETIC ROPE】- Cable length: 80 ft / 24 m; cable diameter: 3/8 in / 9.5 mm; The electric winch is equipped with the stronger synthetic cable rope. It allows you to quickly get rid of the predicament of cars getting stuck in the mud, broken down, and stranded on the beach.

• 【CONVENIENT WIRELESS REMOTES】- The truck winch comes with a high-precision wireless remote control to better monitor and controls the winch operating. It will not be restricted by terrain and weather. To better achieve wireless remote control, we will provide wireless remote control and a one-handed controller for easy use.

• 【MORE ACCESSORIES PROVIDED】- Complete Winches Accessories: 1 x Electric winch, 1 x Hawse Fairlead, 1 x Wireless Remote Controller, 1 x Wired Remote Controller, 1 x Hook, 1x Set of Bolts. The electric winch is made of heavy-duty steel to ensure strength & durability. Waterproof control box, the electric winch is suitable for harsh environment.

• 【ENJOY ANY ADVENTURE】- With plenty of power to assist in ATV recovery, traversing rough terrain, or loading a boat, this ATV winch is a reliable and secure addition to any off-roading adventure. It is a necessary tool for Off-road enthusiasts. Also, it is suitable for heavy lifting, fishing, roadside assistance, etc.
